workcross 650-3 hv

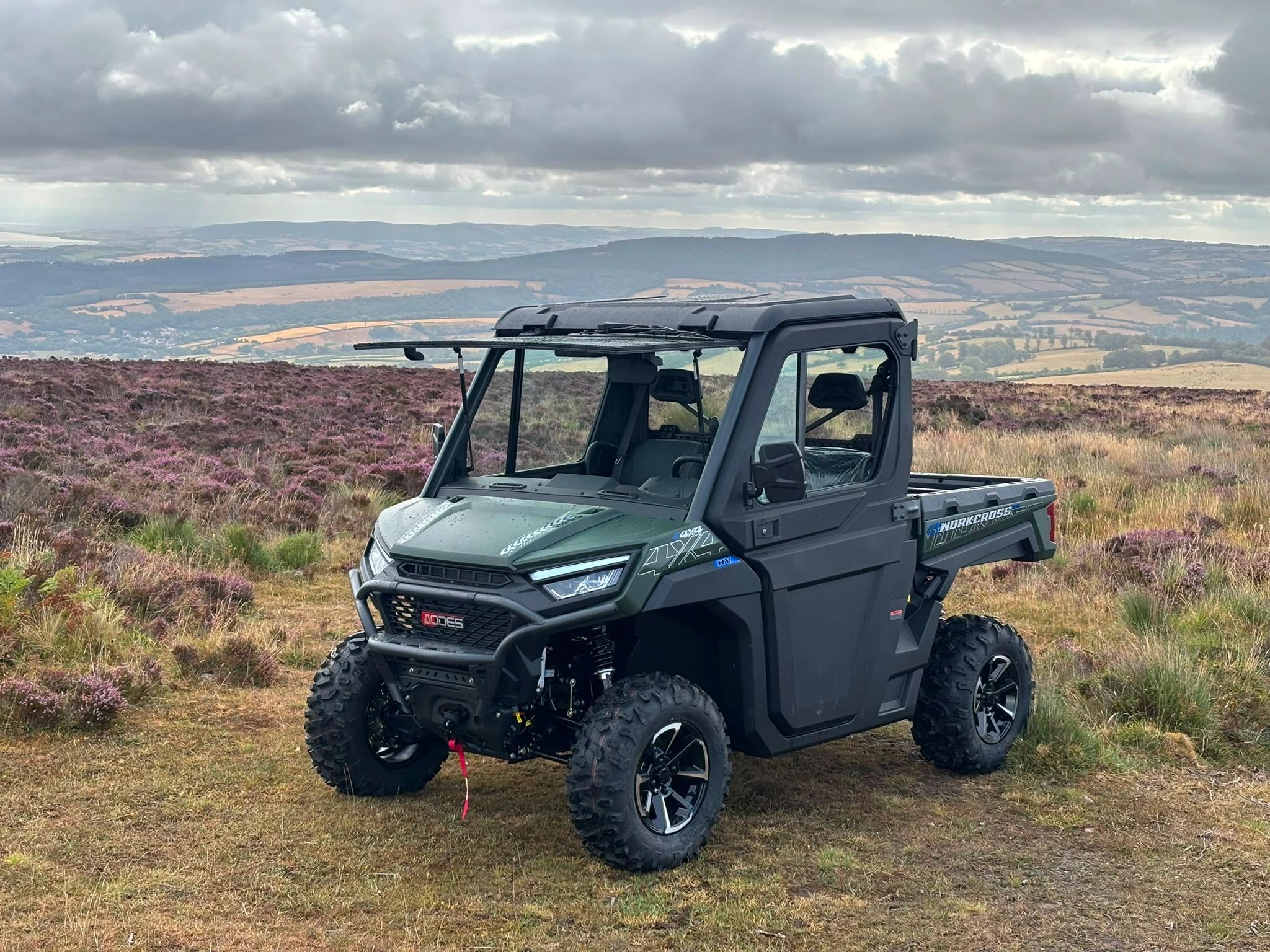

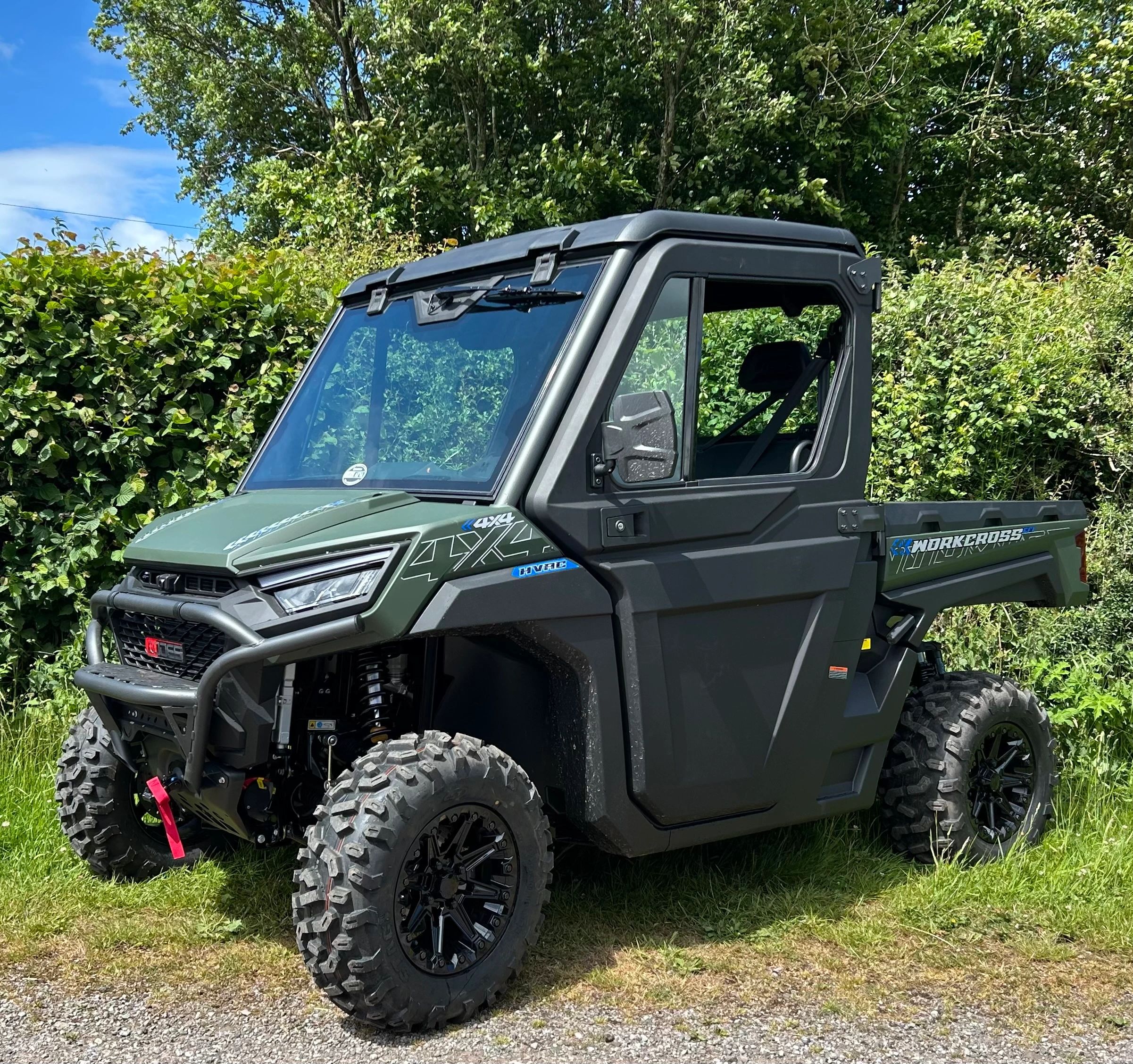

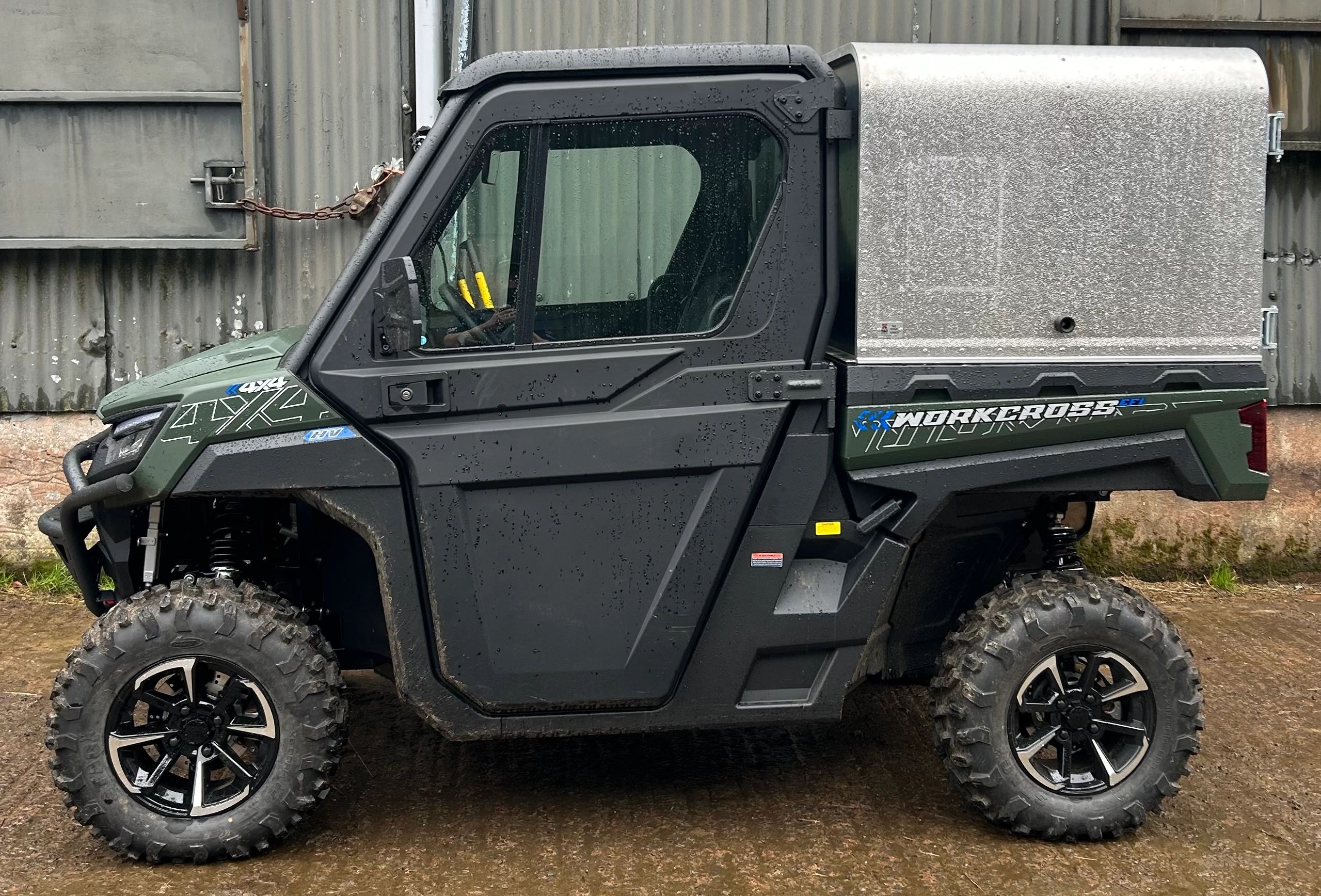

The AODES WorkCross 650- HV is a fully enclosed, three-seat 4x4 UTV built for both off-road adventures and farm tasks. It packs a 650cc V-twin EFI engine, smooth hydraulic damping suspension, electronic power steering, and a heated cabin for comfort in any season.
PACKAGE HIGHLIGHTS
Featuring a V-Twin cylinder, 4-stroke engine with CVT transmission and electric power steering (EPS), this ride is equipped with a 3,500 lbs front winch with wireless controller, a flip glass front windshield with wiper, and a standard rear full windshield. It also boasts heavy-duty front and rear bumpers, 14” alloy rims with 27” off-road tires, and standard black leather seats for three people.
engine
Engine Type: V-Twin Cylinder, 4-Stroke
Displacement: 649 cc
Cylinder Bore × Stroke: 82 × 61.5 mm
Fuel System: Electronic Fuel Injection
Max Power: 39.5kW / 6300rpm
Max Torque: 57N·m / 5300rpm
Cooling System: Liquid Cooled
Starter: Electric
Transmission: CVT, L-H-N-R-P
dimensions and weight
Length × Width × Height: 3095 × 1700 × 2090 mm
Wheelbase: 2145 mm
Ground Clearance: 310 mm
Cargo Bed Dimensions: 920× 1260 × 285 mm
Cargo Bed Capacity: 454 kg(1000lbS)
Winch Capacity: 3500 lbS
Fuel Capacity: 48 L
Dry Weight: 684 kg
Curb Weight: 725 kg(1595.4lbS)
Max Carrying Capacity: 578 kg
Gross Vehicle Weight: 1303 kg(2866.6lbS)
Towing Capacity: 600 kg(1320lbS)
Max Speed: 90 km/h
Turning Radius: 5 m
SUSPENSION AND WHEELS
Front / Rear Suspension: Double A-Arm Independent
Front / Rear Suspension Travel: 254/245
Front Rim / Tires: Steel Wheel 26×9-14
Rear Rim / Tires: Steel Wheel 26×11-14
Shocks: Hydraulic Airbag Damping Shock
For more information or any enquiries about the WORKCROSS 650-3 HV, give us a call on 01643 841100 and our team will be happy to help.
