SUZUKI, AODES, KYMCO AND HONDA ATV, UTV & quad bike SALES, service & parts

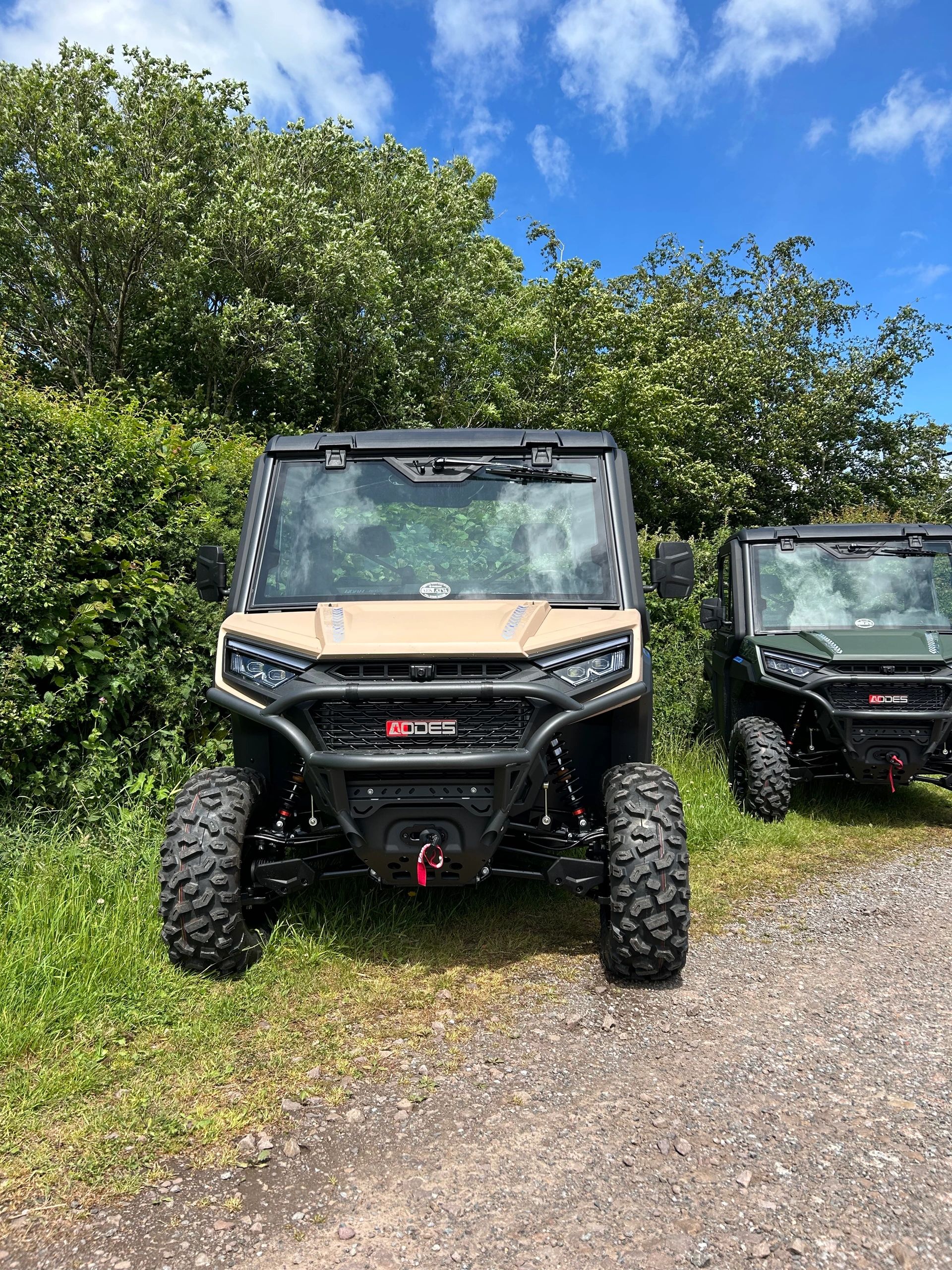

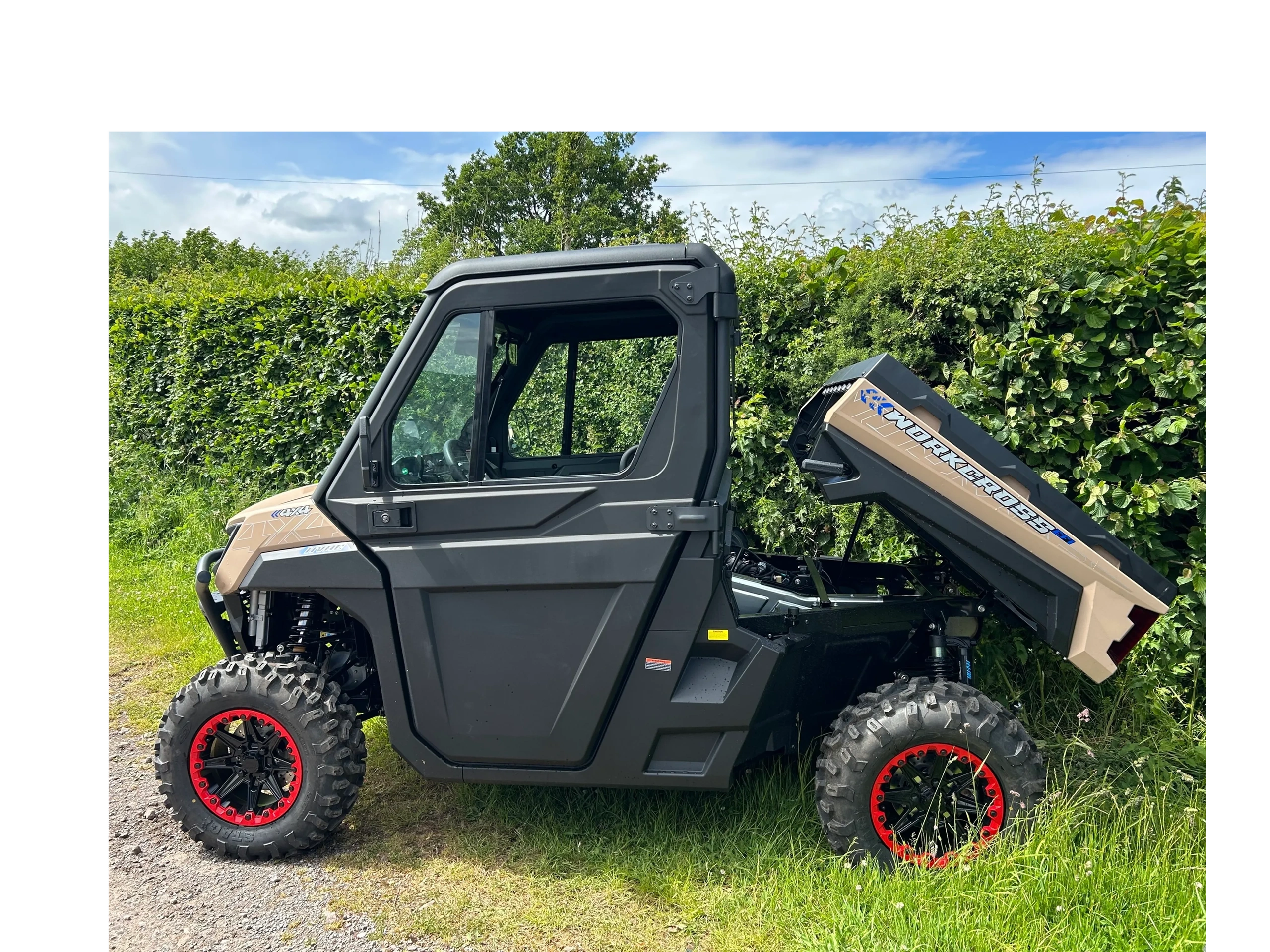

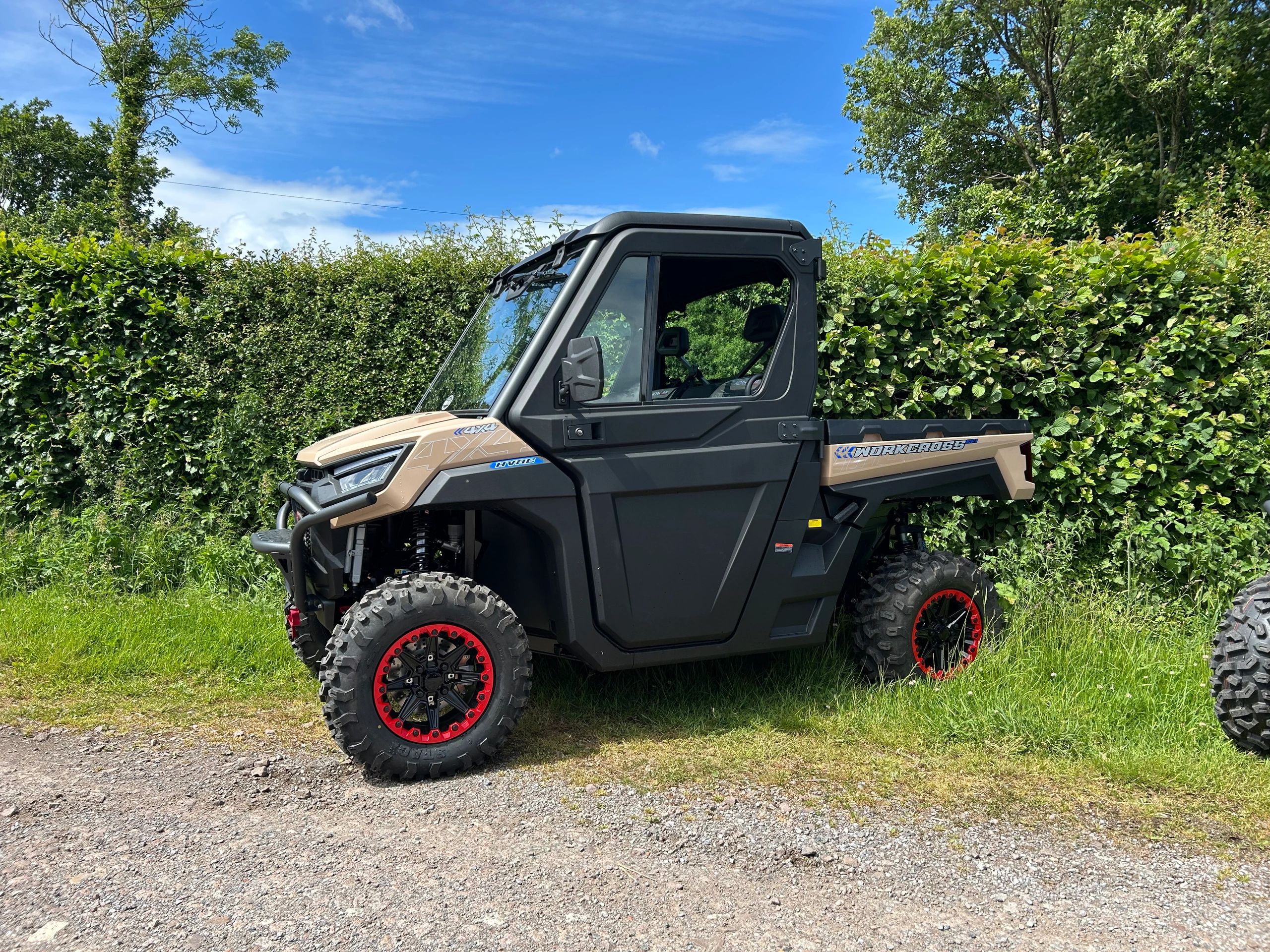

WORKCROSS 1000-3 HVAC
The AODES WorkCross 1000-3 HVAC is a versatile three-seat utility terrain vehicle (UTV) featuring full heating, ventilation, air conditioning, and multiple comfort and utility features designed for all-terrain work and recreation.
PACKAGE HIGHLIGHTS

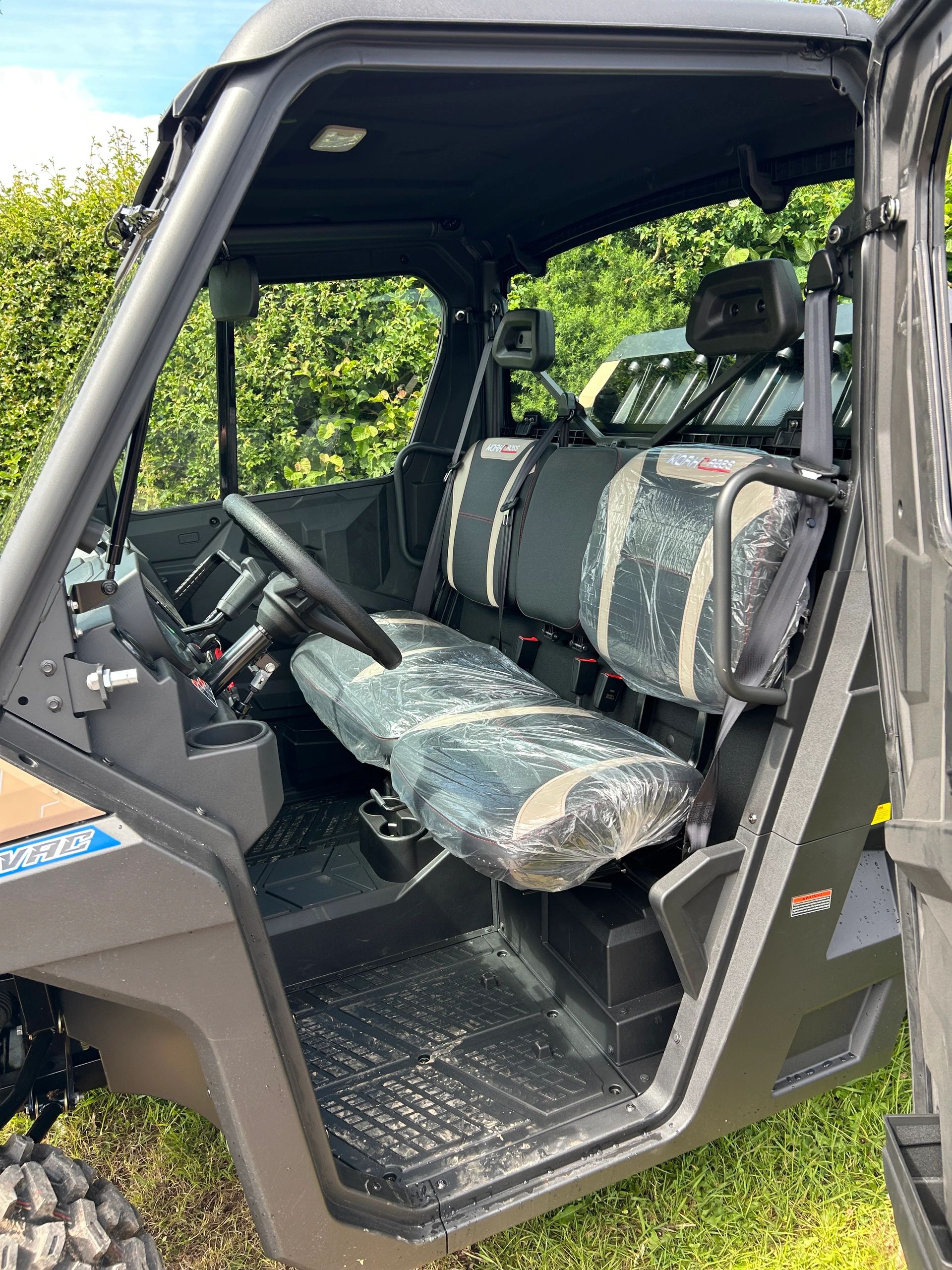

Featuring a 976cc V-Twin engine with an HVAC system, this machine delivers 53kW of power at 6500rpm and 85N·m of torque at 5500rpm. It offers enclosed cabin comfort, a hydraulic airbag suspension, a 48L fuel tank, 310mm of ground clearance, and a 3500lbs winch for added capability.
ENGINE
Engine Type: V-Twin Cylinder, 4-Stroke
Displacement: 976 cc
Bore × Stroke: 91 × 75 mm
Fuel System: EFI
Max Power: 53 kW / 6500 rpm
Max Torque: 85 N·m / 5500 rpm
Cooling: Liquid Cooled
Starter: Electric
Transmission: CVT, L-H-N-R-P
DIMENSIONS AND WEIGHT
Length × Width × Height: 3095 × 1700 × 2090 mm
Wheelbase: 2145 mm
Ground Clearance: 310 mm
Cargo Bed : 920 × 1260 × 285 mm
Fuel Capacity: 48 L
Dry Weight: 844 kg
Curb Weight:: 885 kg
Gross Vehicle Weight: 1463 kg
Towing Capacity: 1760 lbs / 800 kg
Top Speed: 100 km/h
Turning Radius: 5 m
SUSPENSION AND WHEELS
Front / Rear Suspension: Double A-Arm Independent
Front / Rear Suspension Travel: F 254mm / R 245mm
Front Rim / Tires: Alloy Wheel 27×9-R15
Rear Rim / Tires: Alloy Wheel 27×11-R15
Shocks: Hydraulic Airbag Damping Shock
For more information or any enquiries about the WORKCROSS 1000-3 HVAC, give us a call on 01643 841100 and our team will be happy to help.
