SUZUKI, AODES, KYMCO AND HONDA ATV, UTV & quad bike SALES, service & parts

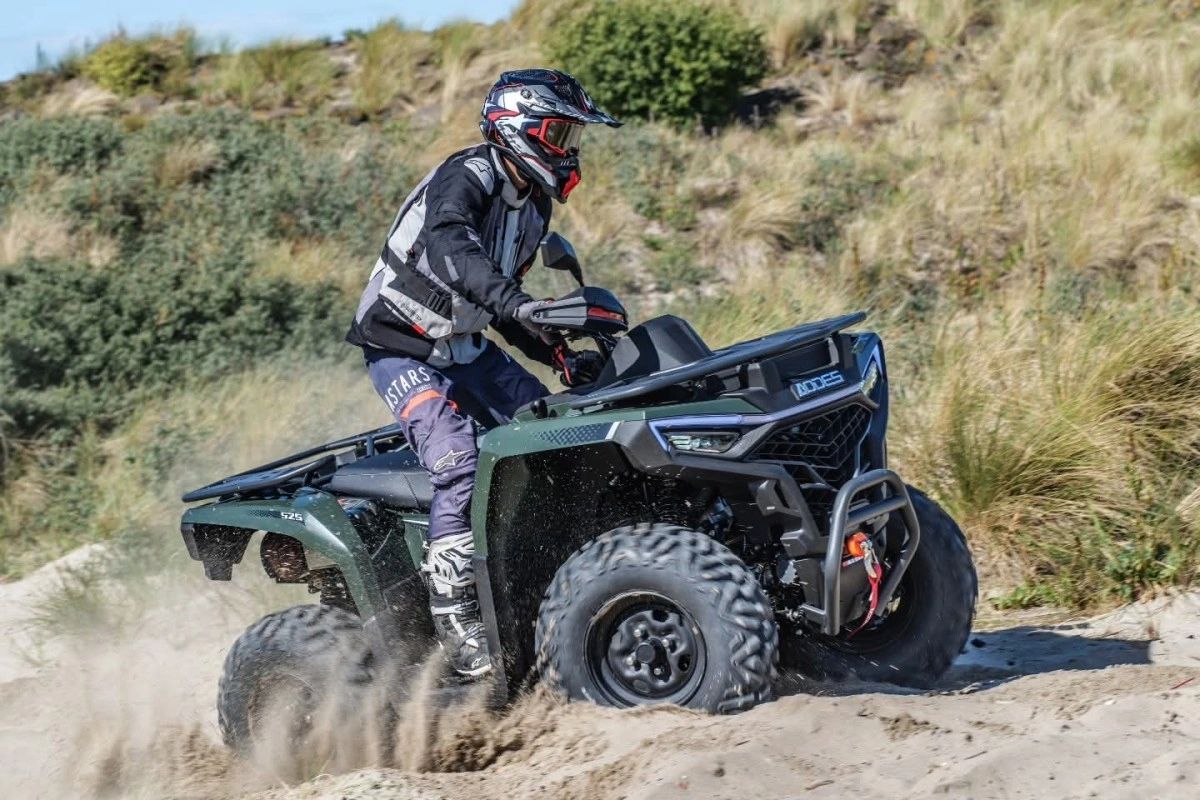

PATHCROSS 525 L
The AODES PathCross 525 L is a versatile off-road utility ATV designed for a range of terrains, featuring a robust winch, large fuel capacity, modular construction, and advanced suspension and braking systems.
Package highlights include a 495.3cc single-cylinder, 4-stroke EFI engine delivering 32kW at 7000rpm and 46N·m of torque at 5800rpm. It features double A-arm independent suspension with 180mm front and 220mm rear travel, 265mm of ground clearance, a 3500lbs winch, and a top speed of 95km/h.
y
ENGINE
Engine Type: Single Cylinder, 4-Stroke
Displacement: 495.3 cc
Cylinder Bore × Stroke: 91 × 76.2 mm
Fuel System: Electronic Fuel Injection
Max Power: 32 kW / 7000 rpm
Max Torque: 46 N·m / 5800 rpm
Cooling System: Liquid Cooled
Starter: Electric
Transmission: CVT, L-H-N-R-P
DIMENSIONS AND WEIGHT
Length × Width × Height: 2215 × 1172 × 1260 mm
Wheelbase: 1460 mm
Ground Clearance: 265 mm
Rack Capacity: Front 30kg / Rear 60kg
Fuel Capacity: 23 L
Dry Weight: 375 kg
Curb Weight: 400 kg
Max Carrying Capacity: 250 kg
GVW: 650 kg
Towing Capacity: 260 kg / 600 kg
Top Speed: 95 km/h
Turning Radius: 3 m
SUSPENSION AND WHEELS
Front / Rear Suspension: Double A-Arm Independent
Front / Rear Suspension Travel: F 180mm / R 220mm
Front Rim / Tires: Steel Wheel 25×8-12
Rear Rim / Tires: Steel Wheel 25×10-12
Shocks: Preloaded, Oil Damped
For more information or any enquiries about the PATHCROSS 525 L, give us a call on 01643 841100 and our team will be happy to help.
